Picking up from where we left, last post, here are some charts of the PET Upper-Case/Graphics PETSCII character set by screen code.

Shortcuts:   Charts / Find a Screen Code / Read-Out.

Charts

First, just like the character set appears on-screen:

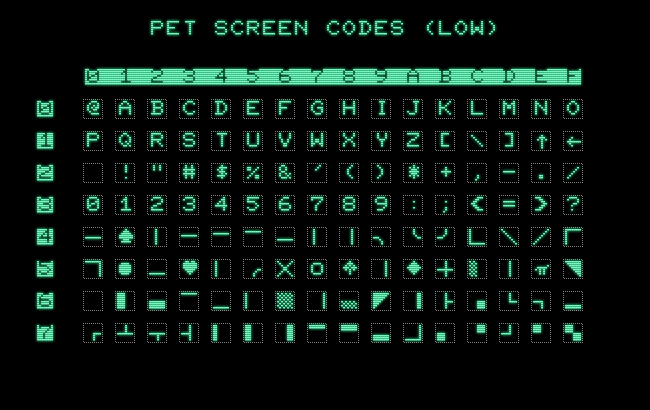

Chart of Lower-Case/Graphics screen codes for the PET 2001, range 0-127.

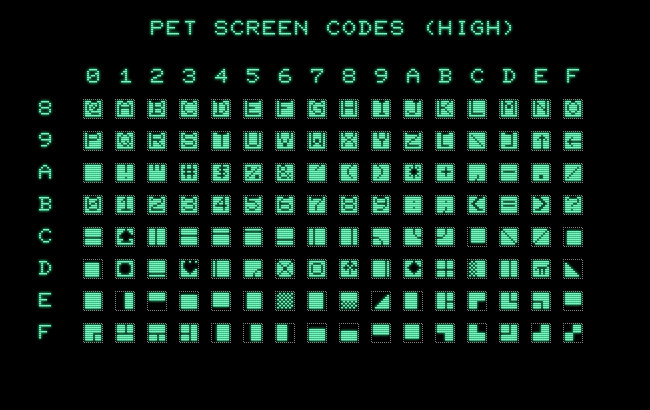

Chart of Lower-Case/Graphics screen codes for the PET 2001, range 128-255.

In a more print-ish fashion:

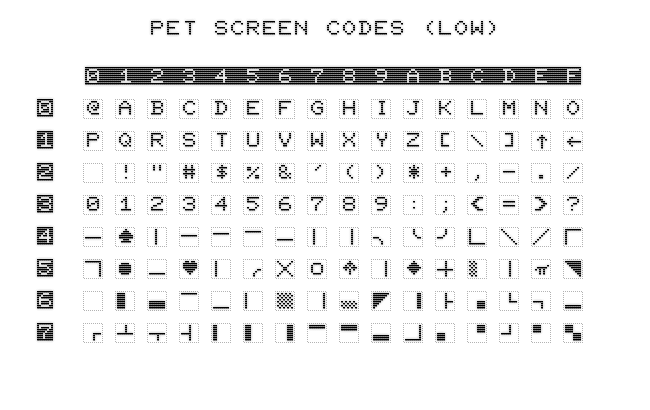

Chart of Lower-Case/Graphics screen codes for the PET 2001, range 0-127 (black and white)

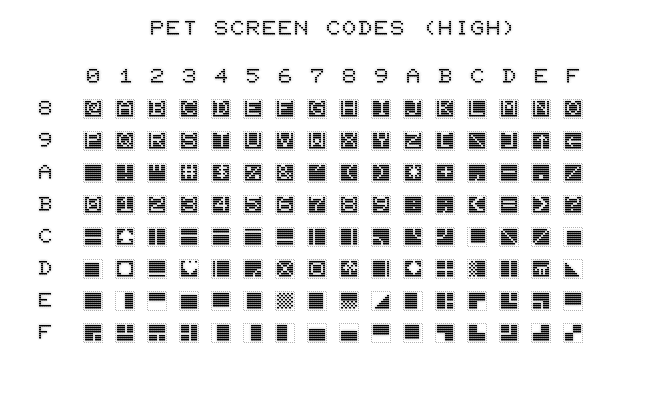

Chart of Lower-Case/Graphics screen codes for the PET 2001, range 128-255 (black and white)

Find Screen Codes by Scan-Line

Enter a bit-pattern for a given scan-line and search the character ROM for any matches.

bits 0x00
Pattern:  for

Character ROM Read-out

And, finally, for all numeric fiends out there, as a binary read-out (JavaScript required):

— And that’s all folks. —
